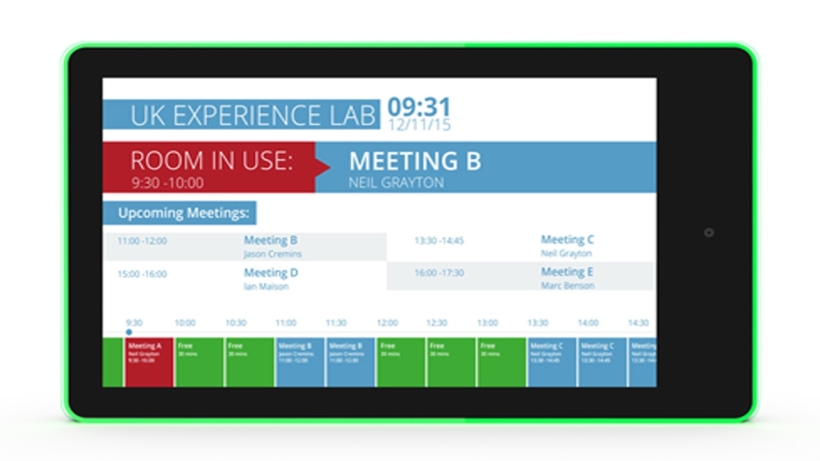

RGB Tablet RK3288

Meeting room tablet with LED all-round and NFC

Item number: 182897

ADB driver installation software: Download

Software for flashing RKDevTool v3.19: Download

Help LED programming: Download

LED control via http: Download

API NFC LED & SDK: Download

LED APK: Download

NFC specification: Download

Handbuch

Firmware 10 inch meeting room RGB tablet:

Batch 03/2021 Android 10: Download

Batch 10/2022 Android 10: Download

Batch 11/2022 and later Android 10: Download

Older productions and complete index: Directory

MDM Intunes Firmware Batch 12/2024: Download

Instructions for flashing:

1. install the "Release_DriverAssitant" driver.
2. start the Android tool
3. connect the mini-USB port to the PC and the tablet and connect the power adapter
4. you will now see an ADB device in the Android tool
5. press the Firmware button under the "Upgrade Firmware" tab and select the Linux/Android image
6. then press the "Switch" button
7. the tablet should now switch off the screen and a loader device should appear in the Android tool; this takes approx. 30 seconds.
8. then press the "EraseFlash" button, only necessary in the event of errors or a system change
9. when the process is finished, you can click on the "Upgrade" button and the image will flash the Linux/Android on the system.
10. the device restarts automatically after the update process.
